Wire & Small Hole EDM

A range of capabilities you can rely on.

With the aid of CAD, CAM, CNC machining, and precision electrodes made in-house, regardless of whether one or multiple electrodes are needed, your job can easily be completed our EDM team.

  • CNC locating small hole EDM
  • 4th axis capability
  • Automatic electrode changer
  • Hole diameters down to .010 of an inch
  • Blind hole capabilities
  • PC programming
  • Bed size 8" x 12" open design
  • 12 inch depth travel

CNC-RAM

  • Repeatability .0001 of an inch
  • 16 Tool Changer
  • Intricate Form and Cavity Capabilities
  • EDM Threading
  • Deep Rib Machining
  • Surface Finishes to 3 Microns
  • 3-D Orbiting
  • Multi-Axis
  • C-Axis Capabilities
  • Contouring
  • PC Networking to Machines
  • High Speed Jump (Improved Flushing - Decreased burn times)
  • Bed Size 25" x 17" x 12"
  • Long Burn times easily accomplished with unattended machining
  • Electrodes produced with the aid of CAD

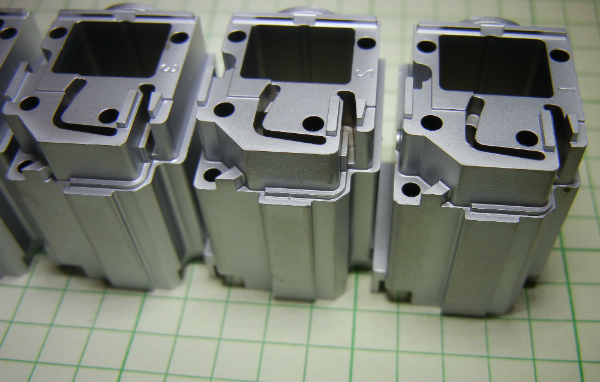

edm 2

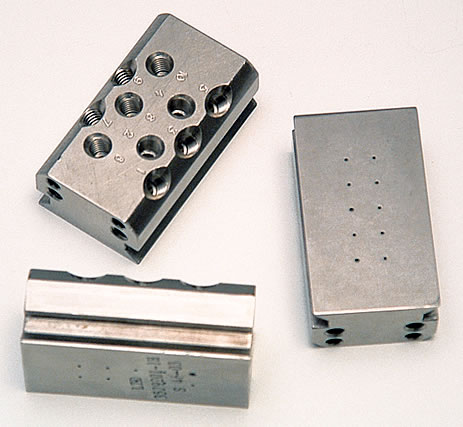

smallhole 2

Wire EDM

  • XYZ 14" x 10" x 10"
  • Positioning accuracy ± .0001
  • Max cutting speed 31.0 in2/hour
  • Wire diameter .004 - .012
  • Auto wire feed
Related Services/Processes

EDM Services from roughing to the final finishing burns are done at Leech Industries with confidence.

Prototype Policy

A Prototype service is available to assist in product design evaluation and aid in verifying manufacturing capabilities.
